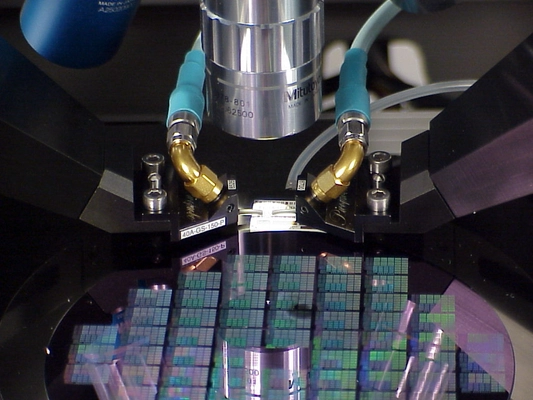

CALIBRATION SUBSTRATE FOR RF PROBES

Part Number

SP-CS

Title

CALIBRATION SUBSTRATE FOR RF PROBES

Applications

DC To THz Probe Head Selection
HF & RF Microwave Probing

Description

PRECISE AND EASY TO USE CALIBRATION STANDARD FOR USE WITH RF PROBES – VNA – AND CABLING ASSEMBLY

Documents
Technical Specifications
MAGNIFICATION RANGE
DEPENDENT ON OBJECTIVE AND CAMERA CHIP SIZE (5X OBJ 50X-350X TYPICAL)
INTERNAL ZOOM
7:1X
FOCUS BLOCK
INCLUDED WITH 50MM COURSE
ILLUMINATION
LED LITE PIPE
EYEPIECES
YES OPTIONAL
CAMERA CAPABLE
YES (C-MOUNT ADAPTER)
OBJECTIVE MOUNT
YES – 1 OBJECTIVE PORT (USER PREFERENCE)

Request a Quote
