High Voltage Probe Arms

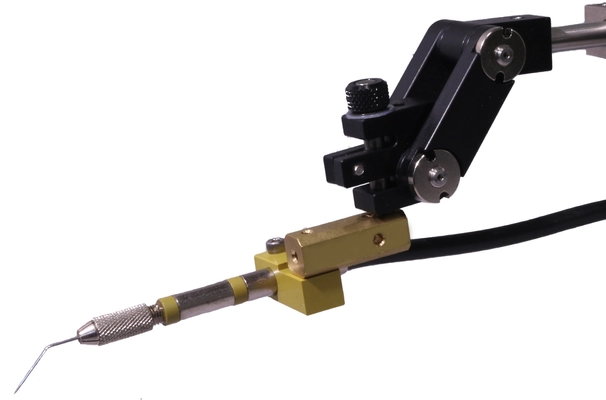

HVP-CX-3

HIGH VOLTAGE 3KV COAX PROBE HOLDER

High Voltage 3KV coax probe holder with Needle-Vice tip mount and cable

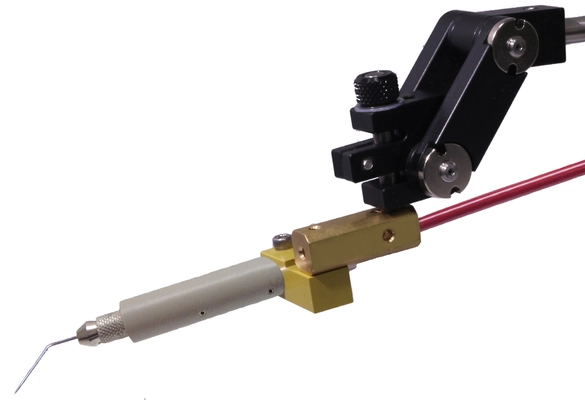

HPV-CX-10

HIGH VOLTAGE 10KV COAX PROBE HOLDER

High Voltage 10KV coax probe holder with Needle-Vice tip mount and cable.

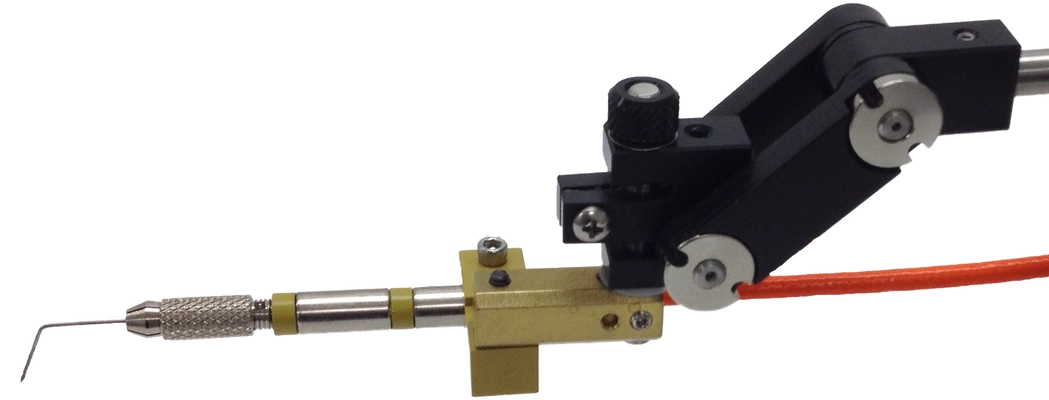

HPV-TX-3

HIGH VOLTAGE 3KV TRIAX PROBE HOLDER

High Voltage 3KV Triax probe holder with Needle-Vice tip mount and cable.

SP-100

ULTRA STABLE X-Y-Z 100TPI IN-LINE MICROPOSITIONER

Ultra-Stable micropositioner with inline control knobs, The SP-100 allows for easy probing on pads as well as internal lines with sub-micron accuracy.

SE-T

5µ, TUNGSTEN PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 5µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

SE-TB

25µ TUNGSTEN PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 25µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

SE-TC

TUNGSTEN CARBIDE PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE TUNGSTEN CARBIDE CAN BE BENT AND / OR CUT - FOR HIGH POWER AND HARD MATERIAL PROBING APPLICATION.

SE-TG

GOLD PLATED TUNGSTEN PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE GOLD PLATED TUNGSTEN CAN BE BENT AND / OR CUT - EXCELLENT FOR HIGH POWER APPLICATION.

SE-20TB

20µ TUNGSTEN PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 20µ, THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR USE WITH SMALL WORKING DISTANCE OBJECTIVES.

SE-20TBL

20µ, TUNGSTEN (LONG) PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 20µ, LONGER LENGTH (51mm), THE RIGID TUNGSTEN BODY CAN BE BENT AND / OR CUT FOR LOW PROFILE SETUPS

SE-20BC

BERYLLIUM COPPER PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE BERYLLIUM COPPER CAN BE BENT AND / OR CUT - EXCELLANT FOR HIGH POWER APPLICATION.

SE-20BCB

BERYLLIUM COPPER PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 125µ, THE BERYLLIUM COPPER CAN BE BENT AND / OR CUT - EXCELLANT FOR HIGH POWER APPLICATIONS AND PROBING ON SOFT OR THIN MATERIALS.

SE-O

OSMIUM PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE OSMIUM CAN BE BENT AND / OR CUT - EXCELLENT FOR HIGH POWER APPLICATIONS AND PROBING ON SOFT OR THIN MATERIALS.

SE-P

PALLADIUM PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE PALLADIUM CAN BE BENT AND / OR CUT - EXCELLENT FOR HIGH POWER AND LOW LEAKAGE APPLICATIONS.

SE-S

STEEL PROBE TIPS

STRAIGHT TEST TIP WITH TIP DIAMETER OF 12µ, THE STEEL CAN BE BENT AND / OR CUT - FOR HIGH POWER AND HARD MATERIAL PROBING APPLICATION.
