RF - Microwave Test Solutions Archives

RF - Microwave Test Solutions

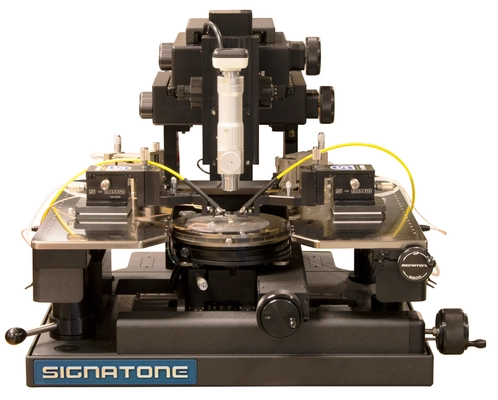

WL-210

WL-210 HIGH PRECISION MANUAL RF PROBE STATION

WL-210 PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER TEST MEASUREMENTS

SP-140BT

90 GHz-140 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 90 to 140GHz, in GSG, GS or SG configurations

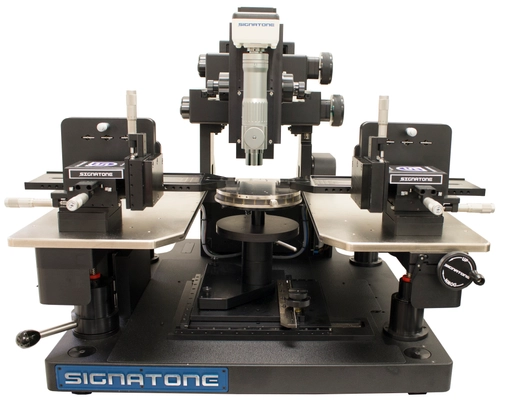

WL-170-THZ

WL-170-THZ STABLE MANUAL RF-mmW PROBE STATION

Designed for reliable and accurate test of mmW, THz, and impedance tuner applications.

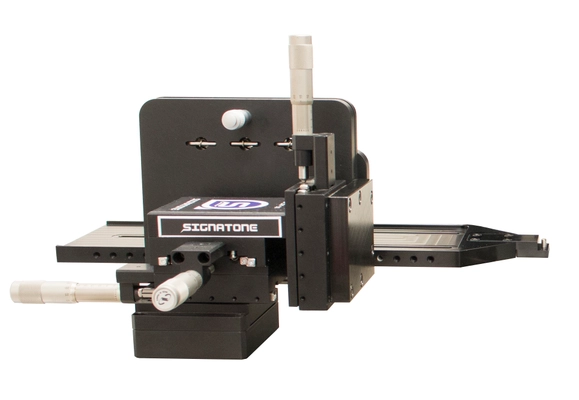

S-LAP-90

MANUAL LARGE AREA RF MICROWAVE MICROPOSITIONER

FOR SPECIFIC USE WITH ULTRA-HIGH FREQUENCY RF MEASUREMENTS WITH A MILLIMETER HEAD, ACCOMMODATES FREQUENCY EXTENDERS & TUNERS.

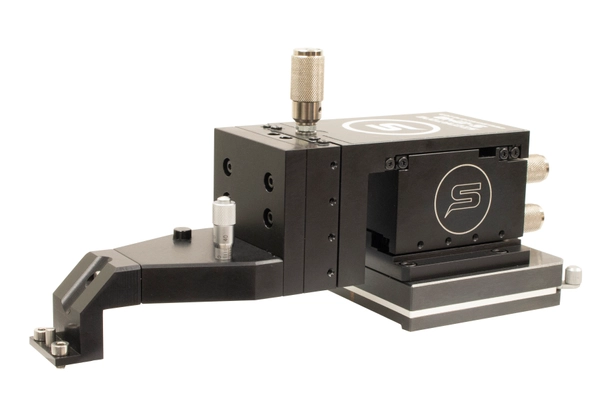

S-M40

IN-LINE MANUAL RF MICROWAVE MICROPOSITIONER

THE S-M40 MICROPOSITIONER IS SPECIFICALLY DESIGNED FOR RF PROBING, IT HAS 25mm TRANSLATION CAPABILITIES IN ALL AXES.

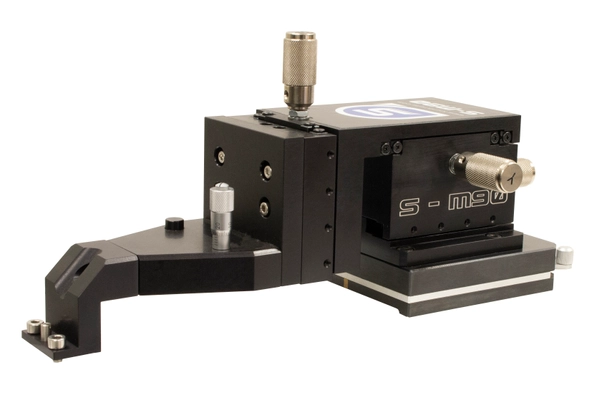

S-M90

MANUAL RF MICROWAVE MICROPOSITIONER

THE S-M90 MICROPOSITIONER IS SPECIFICALLY DESIGNED FOR RF PROBING, INCLUDES INDEPENDANT X-Y-Z-THETA AXES KNOBS-N,S,E,W ORIANTATION.

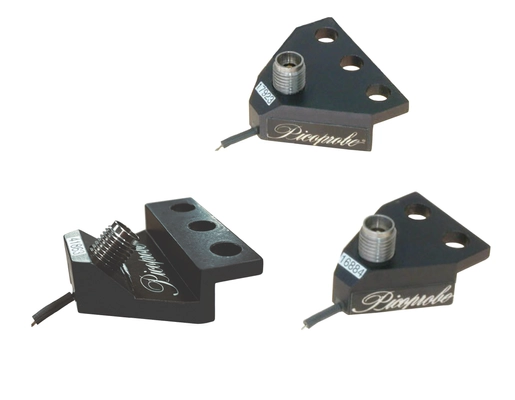

SP-40

DC-40 GHZ RF PROBE

SERIES OF PROBES FOR RF MICROWAVE APPLICATIONS UP TO 40GHz, GSG, GS, SG

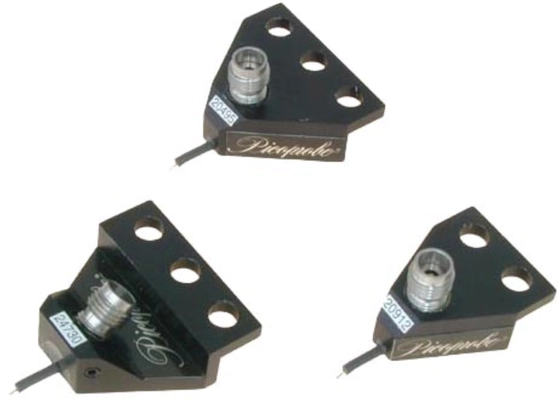

SP-50

DC-50 GHZ RF Probe Head

Series of probes for RF Microwave applications up to 50GHz, GSG, GS, SG or dual configurations (Duel = 2 probes on 1 positioner) Available in different pitch ranging from 25µM to 1250µM

SP-67

DC-67 GHZ RF Probe Head

Series of probes for RF Microwave applications up to 67GHz, GSG, GS, SG or dual configurations (Duel = 2 probes on 1 positioner) Available in different pitch ranging from 25µM to 1250µM

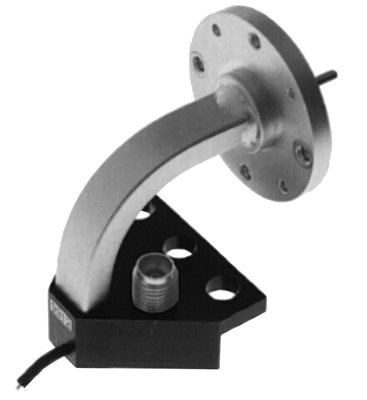

SP-50BT

33 GHZ – 50 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 33GHz to 50GHz, in GSG, GS or SG configurations

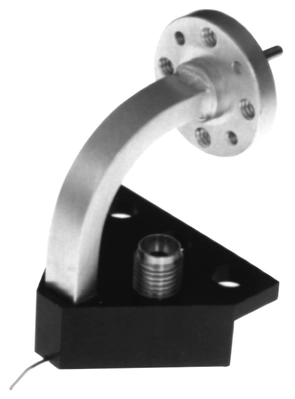

SP-75BT

50 GHz-75 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 50 to 75GHz, in GSG, GS or SG configuration

SP-90BT

60 GHz-90 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 60 to 90GHz, in GSG, GS or SG configurations

SP-120BT

75 GHz-110 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 75GHz to 110GHz, in GSG, GS or SG configurations

SP-170BT

110 GHz-170 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 110 to 170GHz, in GSG, GS or SG configuration

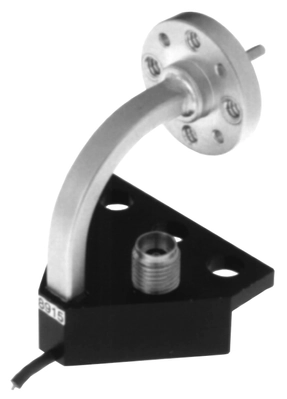

SP-220BT

140 GHz-220 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 140 to 220GHz, in GSG, GS or SG configurations

SP-325BT

PROBE 220GHz-325GHz Millimeter Wave Probe

A range of probes for millimeter applications from 220GHz to 325GHz , in GSG, GS or SG configurations

SP-325BT

PROBE 220 GHz-325 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 220 to 325GHz, in GSG, GS or SG configurations

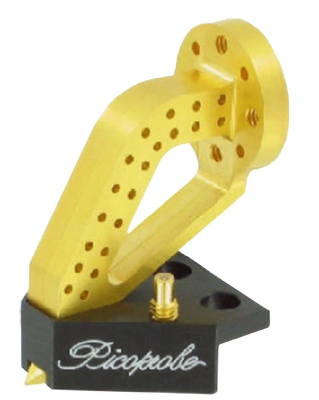

SP-500BT

325 GHz – 500 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 323 to 500GHz, in GSG, GS or SG configurations

SP-1100BT

750 GHz-1100 GHZ /1.1 THz Millimeter Wave PROBE

A range of probes for millimeter applications from 750 to 1100GHz, in GSG, GS or SG configurations

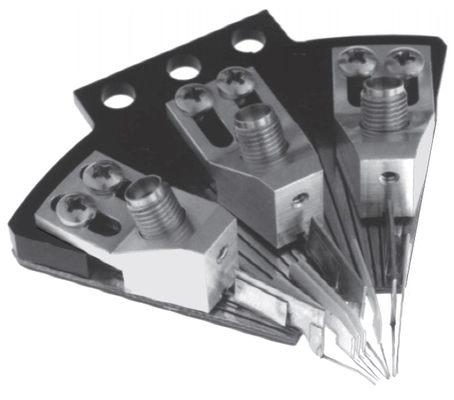

S-MCW-RF

MULTI CONTACT WEDGE PROBE DC – 110 GHZ

Customizable multi-signal probe. Choice of DC & RF probes

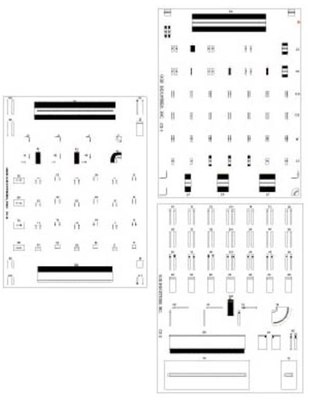

SP-CS

CALIBRATION SUBSTRATE FOR RF PROBES

Precise and easy to use calibration standard for use with RF probes- VNA- and cabling assemblies.

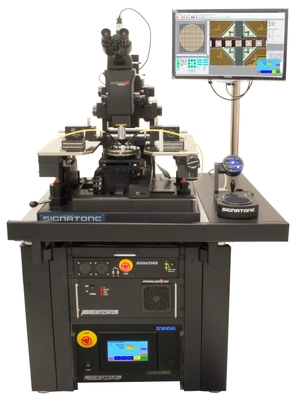

WL-250

200MM SEMI-AUTOMATIC PROBE STATIONS

200MM SEMI-AUTOMATIC PROBE STATIONS FOR RELIABLE, ACCURATE RF/DC/CV AND HIGH-POWER TEST MEASUREMENTS

WL-210-LE

WL-210-LE MANUAL PROBE SYSTEM WITH LOCAL ENCLOSURE

WL-210-LE PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER THERMAL TEST MEASUREMENTS

WL-350-LE

300MM SEMI-AUTOMATIC PROBE SYSTEM WITH LOCAL ENCLOSURE

300mm Semi-Automatic probe station for reliable and accurate RF/DC/CV/High Power, thermal test measurements.

WL-250-LE

200MM SEMI-AUTOMATIC RF-DC PROBE SYSTEM WITH LOCAL ENCLOSURE

200MM Semi-Automatic Probe Station For Reliable, Accurate RF/DC/CV/& High Power Thermal Test Measurements.

A-ZOOM MICRO

HIGH POWER MONO ZOOM VIDEO SCOPE

LOW TO HIGH MAG 1X-7X ZOOMING SCOPE WITH LONG WORKING DISTANCE CAMERA PORT AND OPTIONAL EYEPIECES

S-S12Z

HIGH POWER MONO ZOOM VIDEO SCOPE

LOW TO HIGH MAG 1X-12X ZOOMING SCOPE WITH LONG WORKING DISTANCE AND CAMERA PORT

WL-310-LE

300MM MANUAL RF-DC PROBE SYSTEM WITH LOCAL ENCLOSURE

300mm manual probe station for reliable and accurate RF/DC/CV/High Power , thermal test measurements.

CM-250

CHECKMATE 200MM SEMI-AUTOMATIC PROBE STATION

FOR RELIABLE, ACCURATE RF/DC/CV, AND HIGH-POWER TEST MEASUREMENTS

WL-170-THZ

WL-170-THZ STABLE MANUAL RF-mmW PROBE STATION

Designed for reliable and accurate test of mmW, THz, and impedance tuner applications.

WL-170

WL-170 HIGH STABILITY MANUAL RF PROBE STATION

WL-170 PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER TEST MEASUREMENTS

WL-1160

WL-1160 MULTI-PURPOSE MANUAL RF PROBE STATION

Economical - reliable and accurate test measurements of RF/DC/CV/High Power, MEMS,...devices.

MT

HIGH POWER MICROSCOPE

HIGH POWER MICROSCOPE WITH 4 OBJECTIVE TURRIT, CAMERA MOUNT, AND FIBER OPTIC ILLUMINATION

SMZ-171

STEREO ZOOM LOW POWERED MICROSCOPE

STEREOZOOM SCOPE WITH 6.7:1 ZOOM, LED ILLUMINATION, EYEPIECES, TRINOCULAR HEAD, CAMERA PORT WITH LONG WORKING DISTANCE
