HF-RF- Millimeter Wave Probes

SP-CS

CALIBRATION SUBSTRATE FOR RF PROBES

Precise and easy to use calibration standard for use with RF probes- VNA- and cabling assemblies.

S-LAP-90

MANUAL LARGE AREA RF MICROWAVE MICROPOSITIONER

FOR SPECIFIC USE WITH ULTRA-HIGH FREQUENCY RF MEASUREMENTS WITH A MILLIMETER HEAD, ACCOMMODATES FREQUENCY EXTENDERS & TUNERS.

S-M40

IN-LINE MANUAL RF MICROWAVE MICROPOSITIONER

THE S-M40 MICROPOSITIONER IS SPECIFICALLY DESIGNED FOR RF PROBING, IT HAS 25mm TRANSLATION CAPABILITIES IN ALL AXES.

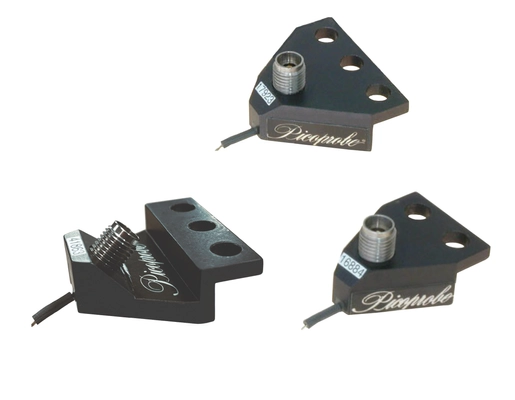

SP-40

DC-40 GHZ RF PROBE

SERIES OF PROBES FOR RF MICROWAVE APPLICATIONS UP TO 40GHz, GSG, GS, SG

SP-50

DC-50 GHZ RF Probe Head

Series of probes for RF Microwave applications up to 50GHz, GSG, GS, SG or dual configurations (Duel = 2 probes on 1 positioner) Available in different pitch ranging from 25µM to 1250µM

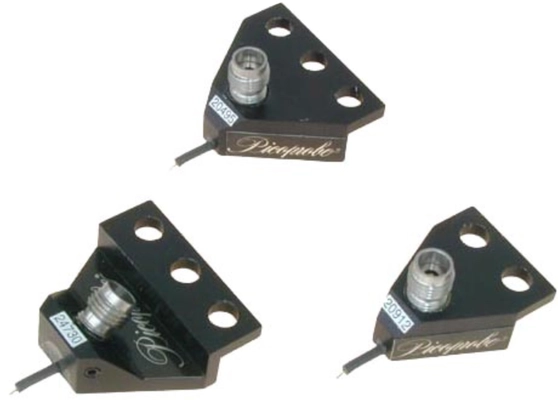

SP-67

DC-67 GHZ RF Probe Head

Series of probes for RF Microwave applications up to 67GHz, GSG, GS, SG or dual configurations (Duel = 2 probes on 1 positioner) Available in different pitch ranging from 25µM to 1250µM

SP-50BT

33 GHZ – 50 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 33GHz to 50GHz, in GSG, GS or SG configurations

SP-75BT

50 GHz-75 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 50 to 75GHz, in GSG, GS or SG configuration

SP-90BT

60 GHz-90 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 60 to 90GHz, in GSG, GS or SG configurations

SP-120BT

75 GHz-110 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 75GHz to 110GHz, in GSG, GS or SG configurations

SP-140BT

90 GHz-140 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 90 to 140GHz, in GSG, GS or SG configurations

SP-170BT

110 GHz-170 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 110 to 170GHz, in GSG, GS or SG configuration

SP-220BT

140 GHz-220 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 140 to 220GHz, in GSG, GS or SG configurations

SP-325BT

PROBE 220GHz-325GHz Millimeter Wave Probe

A range of probes for millimeter applications from 220GHz to 325GHz , in GSG, GS or SG configurations

SP-325BT

PROBE 220 GHz-325 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 220 to 325GHz, in GSG, GS or SG configurations

SP-500BT

325 GHz – 500 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 323 to 500GHz, in GSG, GS or SG configurations

SP-1100BT

750 GHz-1100 GHZ /1.1 THz Millimeter Wave PROBE

A range of probes for millimeter applications from 750 to 1100GHz, in GSG, GS or SG configurations

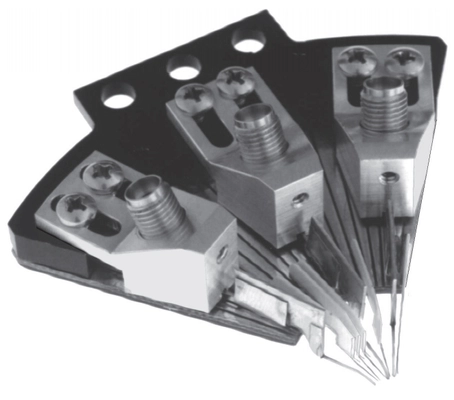

S-MCW-RF

MULTI CONTACT WEDGE PROBE DC – 110 GHZ

Customizable multi-signal probe. Choice of DC & RF probes

S-M90

MANUAL RF MICROWAVE MICROPOSITIONER

The S-M90 Micropositioner Is Specifically Designed For Rf Probing, Includes Independent X-Y-Z-theta Axes Knobs-N,S,E,W Orientation.

WL-210

WL-210 HIGH PRECISION MANUAL RF PROBE STATION

WL-210 PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER TEST MEASUREMENTS

WL-170-THZ

WL-170-THZ STABLE MANUAL RF-mmW PROBE STATION

Designed for reliable and accurate test of mmW, THz, and impedance tuner applications.

WL-1160

WL-1160 MULTI-PURPOSE MANUAL RF PROBE STATION

Economical - reliable and accurate test measurements of RF/DC/CV/High Power, MEMS,...devices.
