Probe Tips & Holders

SP-CS

CALIBRATION SUBSTRATE FOR RF PROBES

Precise and easy to use calibration standard for use with RF probes- VNA- and cabling assemblies.

HPV-CX-10

HIGH VOLTAGE 10KV COAX PROBE HOLDER

High Voltage 10KV coax probe holder with Needle-Vice tip mount and cable.

S-LAP-90

MANUAL LARGE AREA RF MICROWAVE MICROPOSITIONER

FOR SPECIFIC USE WITH ULTRA-HIGH FREQUENCY RF MEASUREMENTS WITH A MILLIMETER HEAD, ACCOMMODATES FREQUENCY EXTENDERS & TUNERS.

S-M40

IN-LINE MANUAL RF MICROWAVE MICROPOSITIONER

THE S-M40 MICROPOSITIONER IS SPECIFICALLY DESIGNED FOR RF PROBING, IT HAS 25mm TRANSLATION CAPABILITIES IN ALL AXES.

SP-40

DC-40 GHZ RF PROBE

SERIES OF PROBES FOR RF MICROWAVE APPLICATIONS UP TO 40GHz, GSG, GS, SG

SP-50

DC-50 GHZ RF Probe Head

Series of probes for RF Microwave applications up to 50GHz, GSG, GS, SG or dual configurations (Duel = 2 probes on 1 positioner) Available in different pitch ranging from 25µM to 1250µM

SP-67

DC-67 GHZ RF Probe Head

Series of probes for RF Microwave applications up to 67GHz, GSG, GS, SG or dual configurations (Duel = 2 probes on 1 positioner) Available in different pitch ranging from 25µM to 1250µM

SP-50BT

33 GHZ – 50 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 33GHz to 50GHz, in GSG, GS or SG configurations

HT4

HIGH TEMPERATURE FOUR-POINT PROBE HEAD

HIGH TEMPERATURE CERAMIC 4-POINT PROBE HEAD (TCR MEASUREMENTS)

SP-75BT

50 GHz-75 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 50 to 75GHz, in GSG, GS or SG configuration

SP4

FOUR-POINT PROBE HEAD

4-Point probe head for resistivity measurements - used at ambient temperatures.

SP-90BT

60 GHz-90 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 60 to 90GHz, in GSG, GS or SG configurations

SP-120BT

75 GHz-110 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 75GHz to 110GHz, in GSG, GS or SG configurations

SE-SM

TUNGSTEN (CAT-WISKER) PROBE TIPS

Tip with point diameter of 1µ. The rigid tungsten body can be bent and or cut, with a small flexible wire for probing delicate features and metal lines.

SE-SMS

TUNGSTEN (CAT-WISKER) PROBE TIPS

Tip with point diameter of 0.2µ. The rigid tungsten body can be bent and or cut, with a small flexible wire for probing delicate features and metal lines.

SM-10

TUNGSTEN (CAT-WISKER) PROBE TIPS

(Cat-Wisker) Tip with point diameter of 0.2µ. The rigid tungsten body can be bent and or cut, with a small flexible wire for probing delicate features and metal lines.

SM-35

TUNGSTEN (CAT-WISKER) PROBE TIPS

(Cat-Wisker) Tip with point diameter of 0.7µ. The rigid tungsten body can be bent and or cut, with a small flexible wire for probing delicate features and metal lines.

SP-140BT

90 GHz-140 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 90 to 140GHz, in GSG, GS or SG configurations

SP-170BT

110 GHz-170 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 110 to 170GHz, in GSG, GS or SG configuration

SP-220BT

140 GHz-220 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 140 to 220GHz, in GSG, GS or SG configurations

SP-325BT

PROBE 220GHz-325GHz Millimeter Wave Probe

A range of probes for millimeter applications from 220GHz to 325GHz , in GSG, GS or SG configurations

SP-325BT

PROBE 220 GHz-325 GHZ Millimeter Wave PROBE

A range of probes for millimeter applications from 220 to 325GHz, in GSG, GS or SG configurations

SP-500BT

325 GHz – 500 GHZ Millimeter Wave Probe Head

A range of probes for millimeter applications from 323 to 500GHz, in GSG, GS or SG configurations

SP-1100BT

750 GHz-1100 GHZ /1.1 THz Millimeter Wave PROBE

A range of probes for millimeter applications from 750 to 1100GHz, in GSG, GS or SG configurations

S-MCW-RF

MULTI CONTACT WEDGE PROBE DC – 110 GHZ

Customizable multi-signal probe. Choice of DC & RF probes

HVP-CX-3

HIGH VOLTAGE 3KV COAX PROBE HOLDER

High Voltage 3KV coax probe holder with Needle-Vice tip mount and cable

HPV-TX-3

HIGH VOLTAGE 3KV TRIAX PROBE HOLDER

High Voltage 3KV Triax probe holder with Needle-Vice tip mount and cable.

SE-O

OSMIUM PROBE TIPS

Straight Test Tip With Tip Diameter Of 12µ, The Osmium Can Be Bent And / Or Cut - Excellent For High Power Applications And Probing On Soft Or Thin Materials.

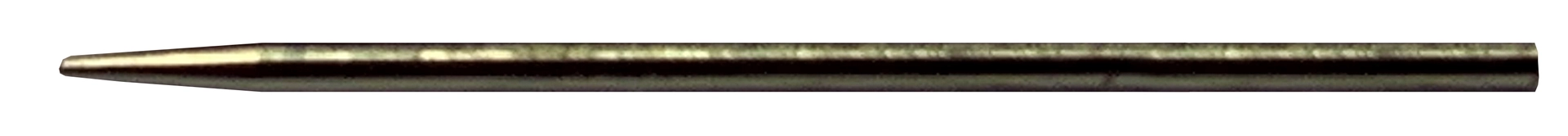

SE-S

STEEL PROBE TIPS

Straight Test Tip With Tip Diameter Of 12µ, The Steel Can Be Bent And / Or Cut - For High Power And Hard Material Probing Application.

SE-20BC

BERYLLIUM COPPER PROBE TIPS

Straight Test Tip With Tip Diameter Of 12µ, The Beryllium Copper Can Be Bent And / Or Cut - Excellant For High Power Application.

SE-20BCB

BERYLLIUM COPPER PROBE TIPS

Straight Test Tip With Tip Diameter Of 125µ, The Beryllium Copper Can Be Bent And / Or Cut - Excellant For High Power Applications And Probing On Soft Or Thin Materials.

SE-10T

1µ TUNGSTEN PROBE TIPS

Straight Test Tip With Tip Diameter Of 1µ, The Rigid Tungsten Body Can Be Bent And / Or Cut For Use With Small Working Distance Objectives.

SE-20TBL

20µ, TUNGSTEN (LONG) PROBE TIPS

Straight Test Tip With Tip Diameter Of 20µ, Longer Length (51mm), The Rigid Tungsten Body Can Be Bent And / Or Cut For Low Profile Setups

SE-20TB

20µ TUNGSTEN PROBE TIPS

Straight Test Tip With Tip Diameter Of 20µ, The Rigid Tungsten Body Can Be Bent And / Or Cut For Use With Small Working Distance Objectives.

SE-20T

3.5µ TUNGSTEN PROBE TIPS

Straight Test Tip With Tip Diameter Of 3.5µ, The Rigid Tungsten Body Can Be Bent And / Or Cut For Use With Small Working Distance Objectives.

SE-20TZ

Z-SHAPE TUNGSTEN PROBE TIPS

Z-shape Test Tip With Tip Diameter Of 3.5µ, The Rigid Tungsten Body Is Bent In A "Z" Shape For Use With Small Working Distance Objectives.

SE-TG

GOLD PLATED TUNGSTEN PROBE TIPS

Straight Test Tip With Tip Diameter Of 12µ, The Gold Plated Tungsten Can Be Bent And / Or Cut - Excellent For High Power Application.

SE-TC

TUNGSTEN CARBIDE PROBE TIPS

Straight Test Tip With Tip Diameter Of 12µ, The Tungsten Carbide Can Be Bent And / Or Cut - For High Power And Hard Material Probing Application.

S-M90

MANUAL RF MICROWAVE MICROPOSITIONER

The S-M90 Micropositioner Is Specifically Designed For Rf Probing, Includes Independent X-Y-Z-theta Axes Knobs-N,S,E,W Orientation.

SE-TB

25µ TUNGSTEN PROBE TIPS

Straight Test Tip With Tip Diameter Of 25µ, The Rigid Tungsten Body Can Be Bent And / Or Cut For Use With Small Working Distance Objectives.

SE-TL

TUNGSTEN PROBE TIPS

Straight Test Tip With Tip Diameter Of 20µ, Long Length Shaft Of 50.1mm, The Rigid Tungsten Body Can Be Bent And / Or Cut For Use With Small Working Distance Objectives.

U-S

PROBE HOLDER WITH SCREW-LOCK PROBE TIP CONNECTION

Universal series probe tip holder comes in one universal length of 4.75". This holder is made to be bent or cut to length by the customer.

U-P

PROBE HOLDER WITH SPRING-CLIP PROBE TIP CONNECTION

Universal probe tip holder comes in one length of 4.75". This holder is made to be bent or cut by the customer.

WL-210-LE

WL-210-LE MANUAL PROBE SYSTEM WITH LOCAL ENCLOSURE

Wl-210-le Probe Stations For Reliable,-accurate Rf/dc/cv,and High-power Thermal Test Measurements

S-750

Economic 3 Axis Micropositioner

ECONOMIC MICROPOSITIONER WITH 3-AXIS CONTROL MOVEMENT, JOYSTICK X-Y MOVEMENT & "Z" KNOB. DESIGNED FOR PAD PROBING

S-CBP

LOW LEAKAGE CERAMIC BLADE, HIGH TEMP, COAX PROBE

Ceramic Isolated <25fa Coax Probe & Holder

WL-210

WL-210 HIGH PRECISION MANUAL RF PROBE STATION

WL-210 PROBE STATIONS FOR RELIABLE,-ACCURATE RF/DC/CV,AND HIGH-POWER TEST MEASUREMENTS

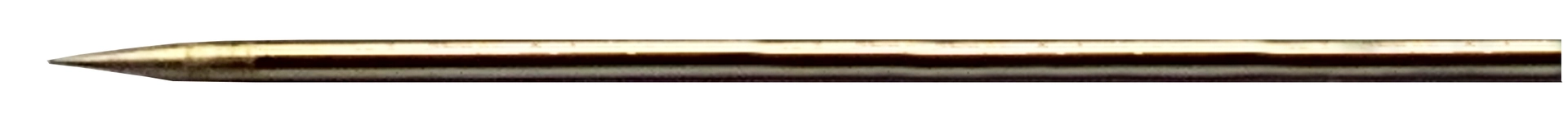

SE-P

PALLADIUM PROBE TIPS

Straight Test Tip With Tip Diameter Of 12µ, The Palladium Can Be Bent And / Or Cut - Excellent For High Power And Low Leakage Applications.
