CALIBRATION SUBSTRATE FOR RF PROBES

cal-sub-cluster

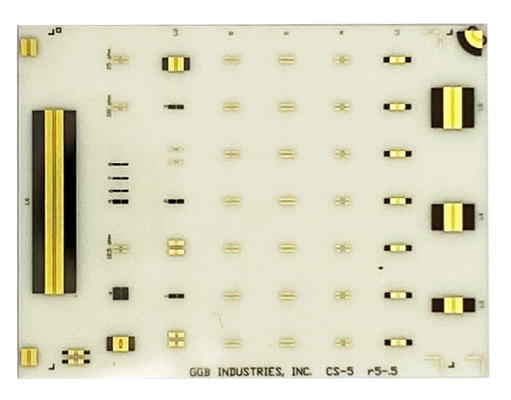

cal-sub-cs-5

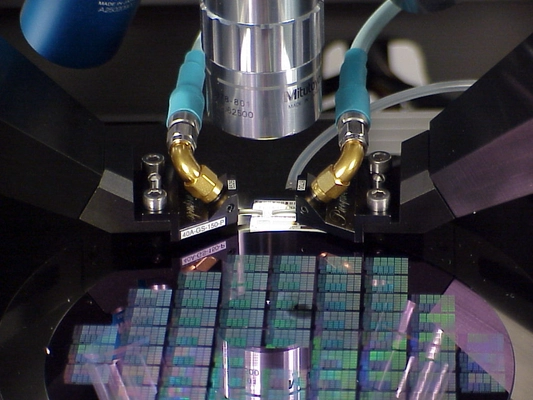

cal-sub-2-sp-40
Part Number

SP-CS

Title

CALIBRATION SUBSTRATE FOR RF PROBES

Applications

DC To THz Probe Head Selection
HF & RF Microwave Probing

Description

PRECISE AND EASY TO USE CALIBRATION STANDARD FOR USE WITH RF PROBES – VNA – AND CABLING ASSEMBLY

Documents

CALIBRATION SUBSTRATE FOR RF PROBING

Technical Specifications
MAGNIFICATION RANGE
DEPENDENT ON OBJECTIVE AND CAMERA CHIP SIZE (5X OBJ 50X-350X TYPICAL)
INTERNAL ZOOM
7:1X
FOCUS BLOCK
INCLUDED WITH 50MM COURSE
ILLUMINATION
LED LITE PIPE
EYEPIECES
YES OPTIONAL
CAMERA CAPABLE
YES (C-MOUNT ADAPTER)
OBJECTIVE MOUNT
YES – 1 OBJECTIVE PORT (USER PREFERENCE)
Applications

DC- CV/IV Analytical Probing
Resistivity Testing
High Power Characterization
RF – Microwave Test Solutions
Thermal Characterization
