LOW LEAKAGE CERAMIC BLADE, HIGH TEMP, COAX PROBE - Signatone

LOW LEAKAGE CERAMIC BLADE, HIGH TEMP, COAX PROBE

s-cbp

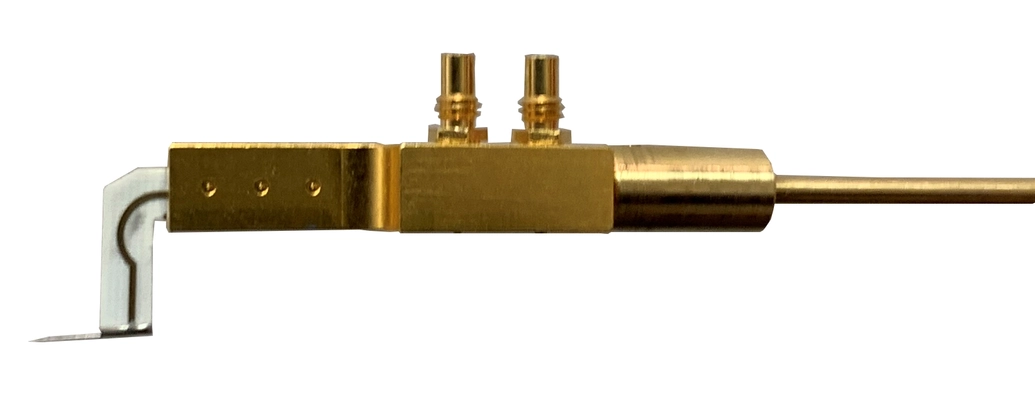

s-cbp-adapter

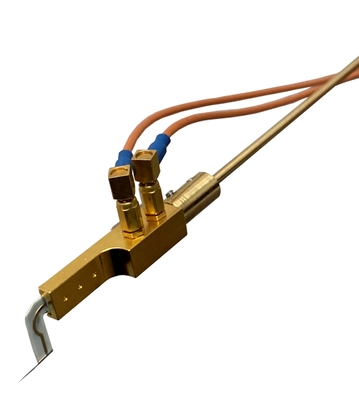

s-cbp-cables-adapter

Part Number

S-CBP

Title

LOW LEAKAGE CERAMIC BLADE, HIGH TEMP, COAX PROBE

Applications

Low Current Analysis
Manual Analytical Probing
Thermal Characterization

Description

USEFUL FOR LOW CURRENT MEASUREMENTS (LESS THAN 3pA @ 300 ° C),CERAMIC BLADE FOR HIGH STABILITY AT TEMERATURE

Documents

Technical Specifications

LEAKAGE CURRENT

<25fA

CONNECTION

2 X SSMC

FREQUENCY

DC TO 500MHz

TIP SIZES

5µm and 25µm

TIP MATERIAL

Tungsten and Beryllium Copper
