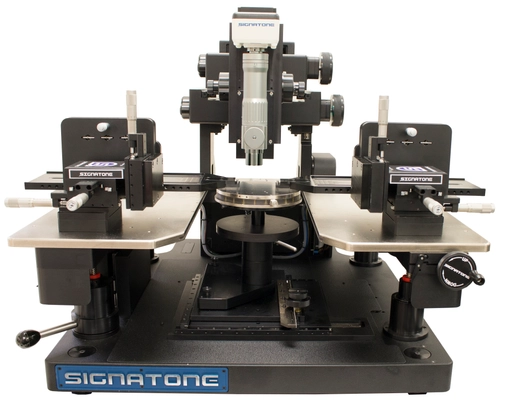

MANUAL LARGE AREA RF MICROWAVE MICROPOSITIONER

Part Number

S-LAP-90

Title

MANUAL LARGE AREA RF MICROWAVE MICROPOSITIONER

Applications

Frequency Extenders and Tuners
HF & RF Microwave Probing
DC To THz Probe Head Selection
Millimeter Wave Probing

Description

EAST, WEST CONFIGURATION
SCREWED BASE FOR A BETTER STABILITY
ANGULAR ADJUSTMENT TO ENSURE THE CONTACT OF MILIMETER HEADS (GS, GSG CONFIGURATIONS)

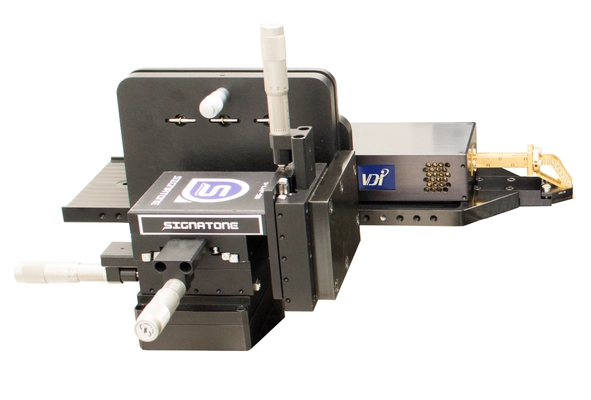

COMPATIBLE WITH DIFFERENTS FREQUENCY EXTENDER AND TUNERS MODELS (ROHDE & SCHWARZ, KEYSIGHT, VDI, ANRITSU,COPPER MOUNTAIN, FOCUS, MAURY …)

Documents
Technical Specifications
ACCURACY
2 MICRON
X-AXIS MOTION
25 mm
Y-AXIS MOTION
25 mm
Z-AXIS MOTION
25 mm
RESOLUTION
40 TPI
CONTROL
KNOB LEFT OR RIGHT
ORIENTATION
EAST WEST
MOUNTING BASE STYLE
HARD MOUNT
HEAD STYLE
THREE HOLE RF MOUNT
PLANARITY SETUP
6 Degree (1MICRON RESOLUTION)
