PROBE HOLDERS/ DELRIN ISOLATED COAX

Part Number

UPCB

Title

PROBE HOLDERS/ DELRIN ISOLATED COAX

Applications

CV/IV Measurements & Failure Analysis
Low Current Analysis
MEMS Probing
Thermal Characterization

Description

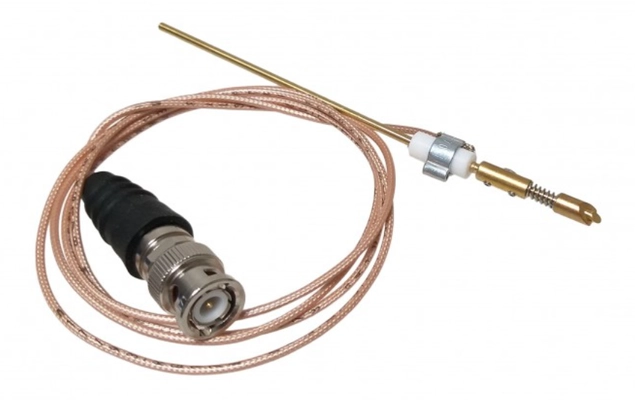

LOW LEAKAGE DELRIN ISOLATED 10pA COAX PROBE HOLDER
COAXIAL TIP HOLDER WITH DELRIN ISOLATION AND SPRING CLIP, SPECIFICALLY DESIGNED FOR LOW NOISE MEASUREMENTS.

Documents
Technical Specifications
LEAKAGE CURRENT
>=10pA
MATERIAL
BRASS
DIAMETER
2.2mm
LENGTH
120mm
CABLE LENGTH
60.96cm
CONNECTION
BNC COAX
ISOLATOR
DELRIN
WIRE
RG178 MINI COAX
TEMPERATURE
UP TO +150°C
TIP MOUNT
SPRING CLIP
